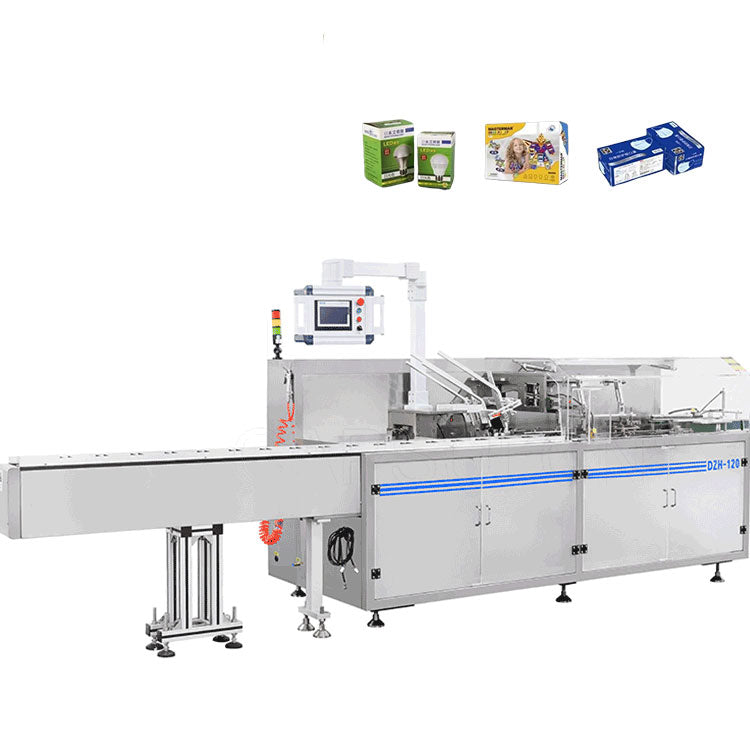

Automatic Cartoning Facial Tissue Paper Box Carton Packing Machine for Medical/Food/Cosmetic

Automatic Cartoning Facial Tissue Paper Box Carton Packing Machine for Medical/Food/Cosmetic

Gainjoysmachine

100 in stock

The machine is a new model developed by our company combining advanced technology at home and abroad. It's a high-tech product integrating light, electricity, gas and machinery, greatly improving the performance and working efficiency, realizing the requirement of fast packing, and keeping stable and reliable state when running fast.
This machine is suitable for automatic feeding and packing of food, medicine, daily chemicals, entertainment, hardware and other goods. The automatic feeding mechanism is easy to adjust, the number of boxes to be packed can be set arbitrarily on the operation screen. The whole process of on-line material testing, indentation batch number, paper tongue packaging at both ends of paper box (also applicable to hot melt adhesive), material shortage elimination and finished product output is completed automatically.

Cartoning speed                          30-100 cartons/ min
Carton Quality requirements 250-350g/m2 (depend on the size of the carton)
Dimension range (L×W×H) (70-200) mm× (35-120) mm× (14-70) mm
Compressed air Working pressure ≥0.6mpa
Air consumption 120-160L/min
Power supply 380V 50HZ
Main motor power 1.5kw
Dimension (L×W×H) 3150mm×1350mm×1800mm
Machine net weight About 1400kg
